Lindapter M12 Type A
- Brand: Lindapter
From £345.00 ex. VAT per 100From £414.00 inc. VAT per 100
Description
Standard girder clamp used to quickly connect steel beams with parallel / flat flanges and resist moderate tensile loading.
Overview

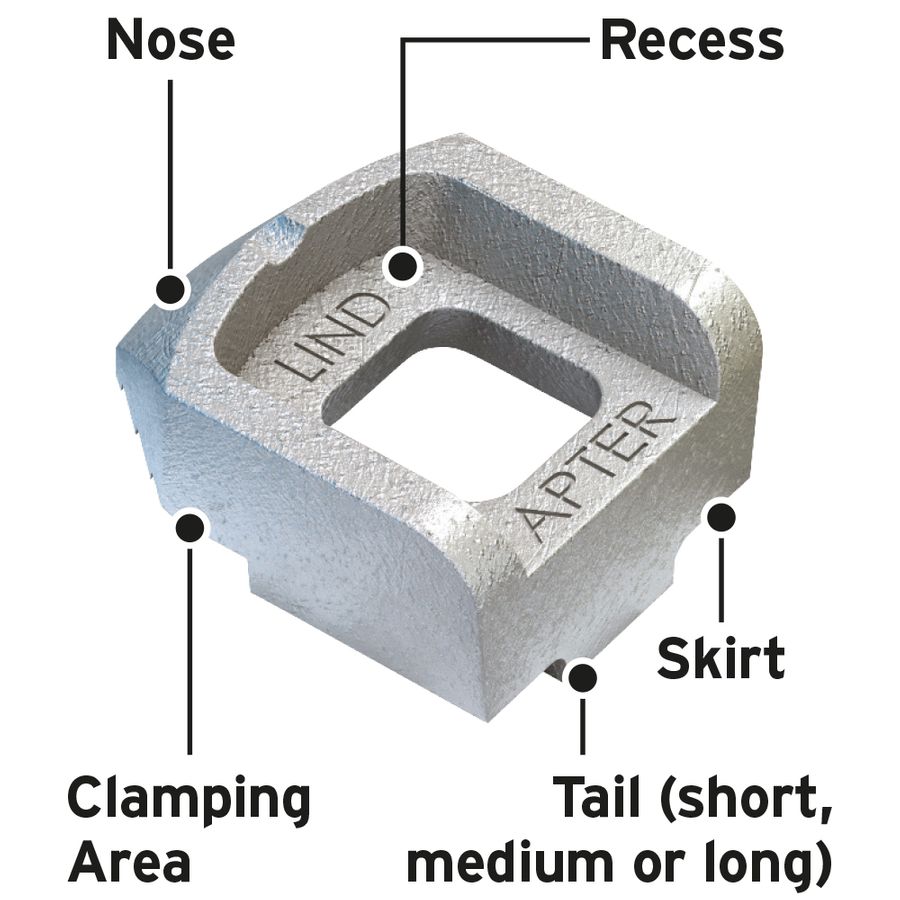

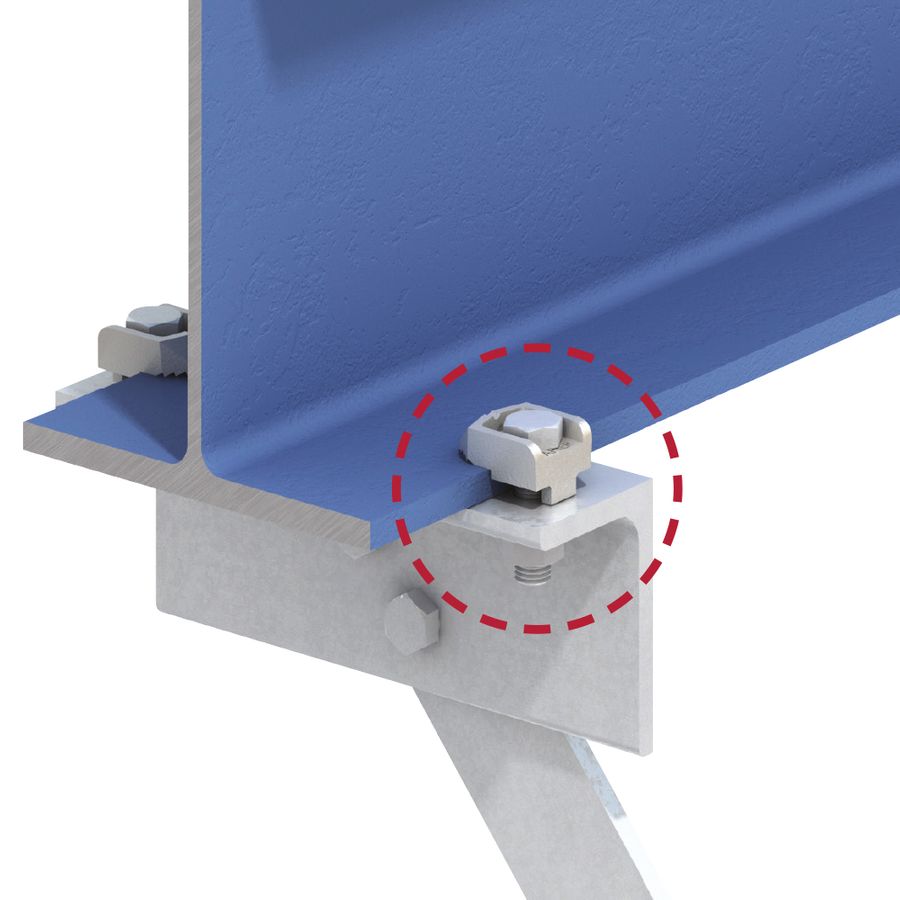

The Type A girder clamp is used to achieve a fast steelwork fixing connection between two steel beams and is often used in a pair with Type B clamps. It has a recessed top to hold the bolt head captive while the nut and washer are tightened down using only one tool. The skirt on the underside of the clamp abuts the edge of the beam flange and prevents the clamp rotating during installation. Type A girder clamps can also be used on their own if one piece of the steelwork has been pre-drilled.
Features & Benefits
- Recessed top holds the bolt captive while the nut is tightened.
- Ideal for parallel flanges.
- Supports up to 78.8kN tensile in a four-bolt configuration.
Approvals
- CE Marked
- Lloyd’s Register Approved
- TÜV Nord Approved
- Manufactured to ISO9001 and ISO14001
Tail Lengths & Packing Pieces

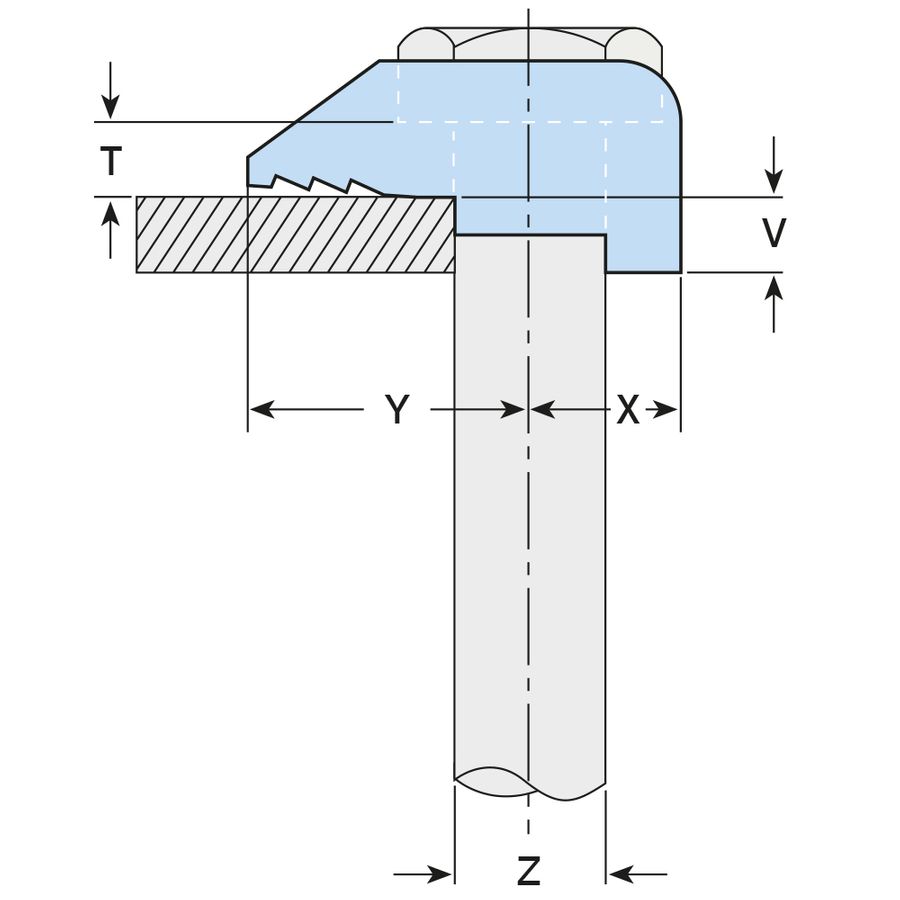

The clamp is available in three tail lengths, Short, Medium and Long and can be used with Lindapter packing pieces to increase the clamping range. Choose the correct combination of tail length and packing pieces to suit a specific flange thickness. Download datasheet below for selection table.
Location & End Plates
These plates ensure the clamps and bolts are located in the correct position relative to the supporting steelwork. Location plates are simple fabricated items designed to sit between the two sections to be clamped together to ensure the bolts are fixed at the correct centres. End plates are simple fabricated items that are pre-welded to support frames, bracket or sections, allowing connection to the supporting structure with standard Lindapter clamps. Download datasheet below for further information.
Properties
- Manufactured from malleable iron to BS EN 1562.
- Available with zinc plated or hot dip galvanised finish.
- Reaction to fire: A1 (Steel)
Durability and corrosion protection:
Corrosivity Class | Galvanised Steel | Electroplated Steel |
C1 | More than 50 years | More than 20 years |
C2 | More than 50 years | More than 5 years |
C3 | More than 20 years | Not suitable |
