Fischer FHY Hollow Ceiling Anchor Stainless Steel

Description

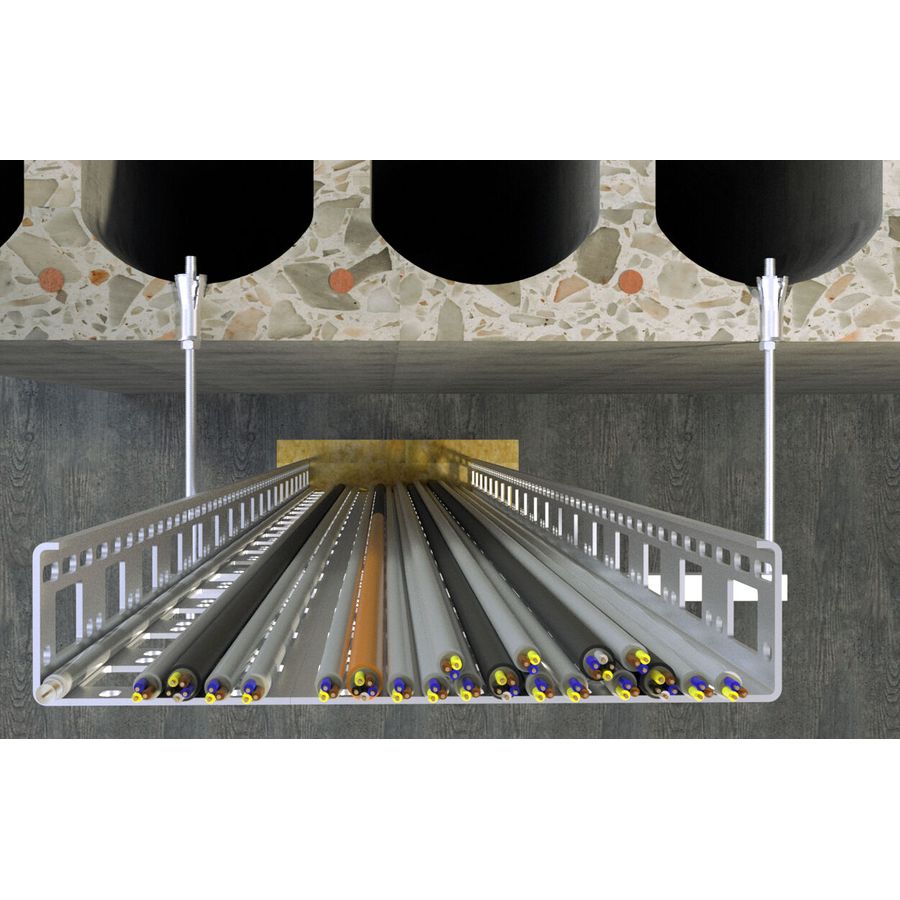

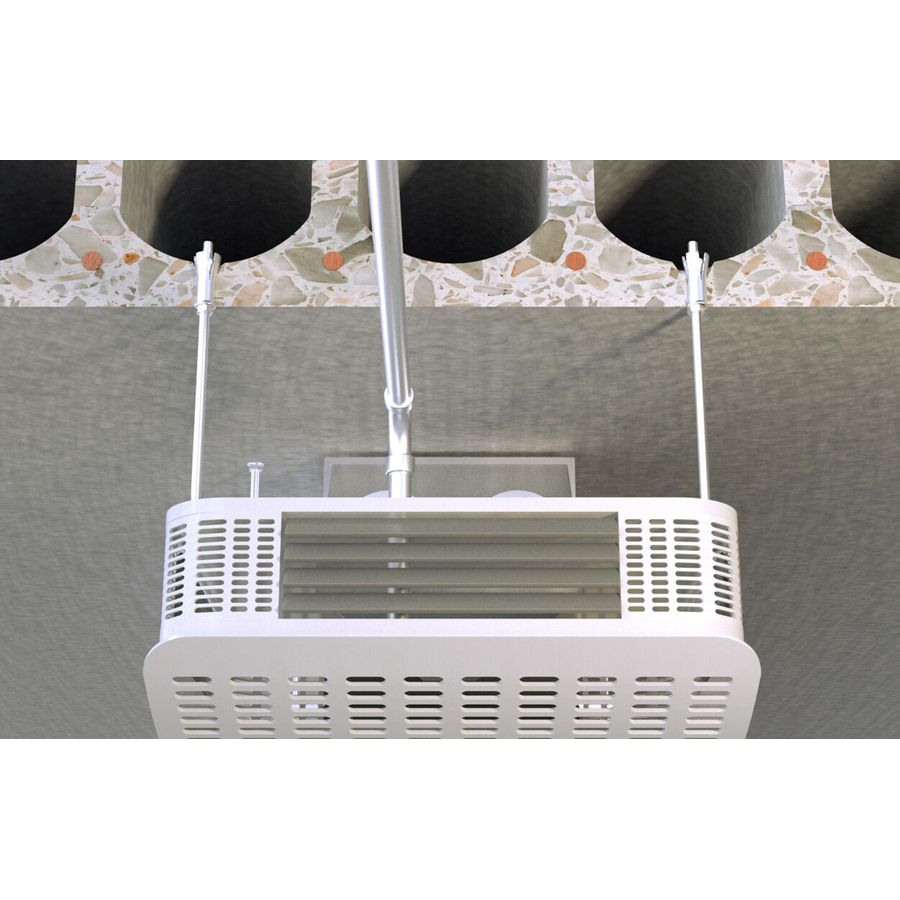

The Fischer Hollow-Ceiling Anchor FHY is designed for anchoring in pre-stressed hollow-core concrete slabs. Available in zinc-plated and stainless steel, it is ideal for pipelines, cable trays, and ventilation systems.

Key features include easy installation, prevention of sleeve slipping, and suitability for both cavities and solid materials. Its metric internal thread allows the use of standard screws or threaded rods.

The hollow-ceiling anchor is set in the drill hole by hand in a pre-positioned installation and is driven in flush to the surface of the building material using a hammer. The easy installation saves time. The embossed edge prevents the anchor sleeve from slipping deeper into the cavity, which makes the installation process easier. When the torque is applied, the cone is pulled into the expansion sleeve. This expands in the cavity and braces itself against the wall of the drill hole in the solid building material.

Approved for use in seismic conditions, this anchor ensures flexibility and safety.

Building materials approved for:

• Pre-stressed hollow-core concrete slabs ≥ C45/55

Approvals

• ETA-21/0857
• DoP No. 0302
• Z-21.1-171
