Fischer Hammerset Anchor EA II BZP

Description

The internally threaded anchor with a rim for simple Hammerset installation.

The fischer hammerset anchor EA II is an internal thread anchor made from zinc-plated and stainless steel. The fischer hammerset anchor is ideal for anchoring sprinkler systems, cable trays, and cantilevers both inside and outside. The European Technical Approval for non-cracked concrete, approval for multiple use for non-structural systems, and classification into fire resistance class R 120 offer added safety. The hammerset anchor is mounted with the hammer flush to the base material. The embossed rim prevents slipping. With the setting tool EAW H Plus or machine setting tool EA II S-SDS, the sleeve is expanded and braced against the drill hole wall through the driving in of the internal pin.

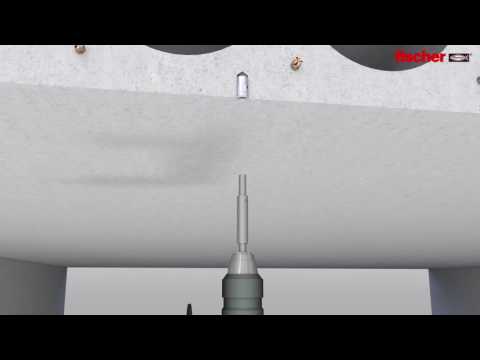

The Hammerset anchor is set flush to the surface of the anchoring base using the hammer. With the setting tool EHS Plus or the machine setting tool EMS the sleeve is expanded by driving in the internal rod and expands against the drill hole wall. For correct expansion to take place, no torque must be applied to the screw or the threaded rod. The fischer Hammerset anchor EA II is ideal for fixing sprinkler systems, gratings, and consoles in internal areas with approval.

Applications

• Pipelines and ventilation ducts
• Sprinkler systems
• Cable conduits and wires
• Gratings
• Steel constructions
• Machines
• Consoles
• Shuttering props

Building materials

• Approved for:
• Concrete C20/25 to C50/60, cracked, for the multiple fixings of non-load-bearing systems
• Concrete C20/25 to C50/60, non-cracked
• Also suitable for:
• Concrete C12/15
• Natural stone with dense structure
